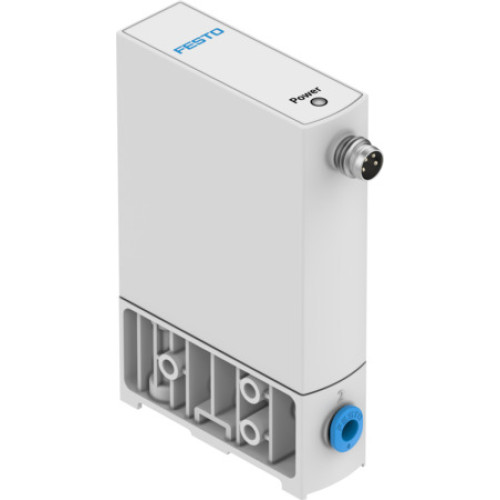

VEAA-L-3-D9-Q4-V1-1R1 Proportional-pressure regulator

Manufacturer's No: VEAA-L-3-D9-Q4-V1-1R1     Manufacturer: Festo
VEAA-L-3-D9-Q4-V1-1R1 Proportional-pressure regulator

Availability Available to order

£389.39
  • Valve function: 3-way proportional pressure regulator
  • Type of piloting: Direct
  • Type of reset: Mechanical spring
  • Type of actuation: Electric
  • Sealing principle: Soft
  • Ambient temperature: 0°C to 50°C
  • Media temperature: 5°C to 50°C
  • Storage temperature: -20°C to 70°C
  • Dimensions: 15mm x 54.5mm x 85mm
  • Pneumatic connections: Port 1, Port 2, Port 3 - QS-4

Read more

  • Material seals: NBR
  • Inlet pressure range: 0 MPa to 1.1 MPa (0 BAR to 11 BAR, 0 PSI to 159.5 PSI)
  • Output pressure range: 0.003 MPa to 0.6 MPa (0.03 BAR to 6 BAR, 0.435 PSI to 87 PSI)
  • Standard nominal flow rate: 10 L/min
  • Linearity: 0.5%
  • Reproducibility: 0.4%
  • Hysteresis: 0.25%
  • Temperature coefficient: 0.05%/K
  • Product weight: 55g
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
  • Degree of protection: IP65
  • Approval: RCM trademark, KC mark: KC-EMV, CE mark, UKCA marking
  • Note on materials: RoHS-compliant
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Operational voltage range: 19V to 29V, Nominal operating voltage: 24V
  • Residual ripple: 10%
  • Setpoint value: 0-10V
  • Signal range analogue output: 0-10V
  • Accuracy analogue output: ±2%
  • Max. electrical power consumption: 1W
  • Safety instructions: Safety position VEAA/VEAB - valve blocked in case of electrical power supply failure
  • Display type: LED
  • Electrical connections: 4-pin, M8x1, Plugs, To EN 60947-5-2
  • Material housing: PA-reinforced


Product

Manufacturer Material ID -
VEAA-L-3-D9-Q4-V1-1R1
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
84811099
Country of Origin -
CH
UNSPSC -
39121402
