812-114

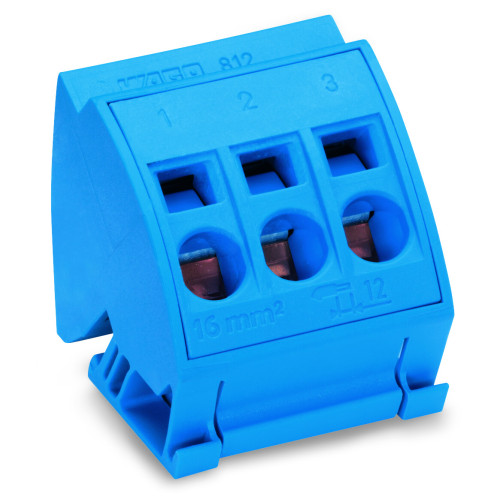

Busbar terminal block, for (10 x 3) mm busbars, without push-buttons, blue

Manufacturer's No: 812-114     Manufacturer: WAGO
Busbar terminal block, for (10 x 3) mm busbars, without push-buttons, blue

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£6.21
  • Busbar terminal block
  • For (10 x 3) mm busbars
  • CAGE CLAMP® technology
  • 16.00 mm² capacity
  • Color: Blue


Product

Manufacturer Material ID -
812-114
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
12
UNSPSC -
39121410

Technical Specification

Busbar thickness -
3 Millimetre
Busbar width -
10 Millimetre
Max. conductor cross section -
16 Square millimetre
Max. rated operation current Ie -
96 Ampere
Suitable for -
Flat rail
Suitable for round conductor connection -
Width clamp -
38 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£6.21
