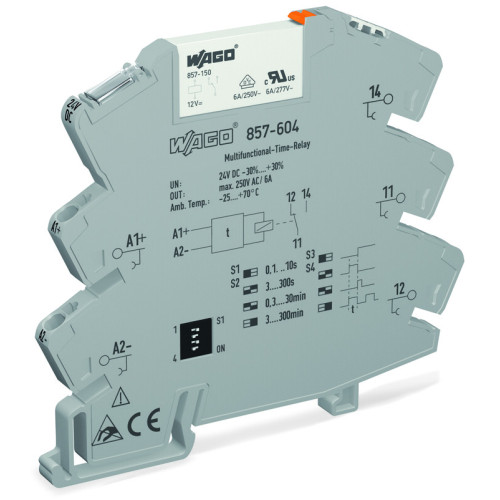

857-604

Timer relay module, Nominal input voltage: 24 VDC, Limiting continuous current: 6 A, gray

Manufacturer's No: 857-604     Manufacturer: WAGO
Timer relay module, Nominal input voltage: 24 VDC, Limiting continuous current: 6 A, gray

Availability Available to order

£44.21
  • Timer relay module
  • Nominal input voltage: 24 VDC
  • Limiting continuous current: 6 A
  • Railway application
  • Multifunctional
  • Yellow status indicator
  • Module width: 6 mm
  • Color: Gray


Product

Manufacturer Material ID -
857-604
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85437090
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
With plug-in socket -
Depth -
94 Millimetre
Function delay-on energization -
Function floating contact on de-energization -
Function floating contact on energization -
Height -
94 Millimetre
Nominal current -
6 Ampere
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.1 Second
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
DC
Width -
6 Millimetre

Availability Available to order

£44.21
