862-1552

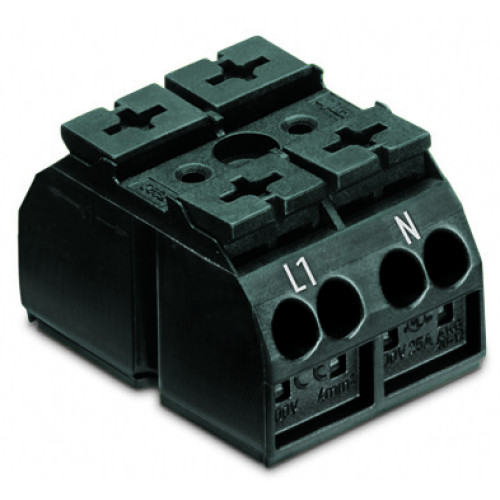

4-conductor chassis-mount terminal strip, without ground contact, L1-N, black

Manufacturer's No: 862-1552     Manufacturer: WAGO
4-conductor chassis-mount terminal strip, without ground contact, L1-N, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.01
  • 4-conductor chassis-mount terminal strip
  • L1-N, 2-pole configuration
  • Accommodates 3 mm ø screw and nut
  • 2x pin design
  • Terminal strip size: 4 mm²
  • Color: black


Product

Manufacturer Material ID -
862-1552
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
500
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
35 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
24 Millimetre
Height at lowest possible mounting height -
21.4 Millimetre
Connection position -
Sideways
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
22.3 Millimetre
Halogen free -
Height -
35 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
4
Number of poles -
2
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
24 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.01
