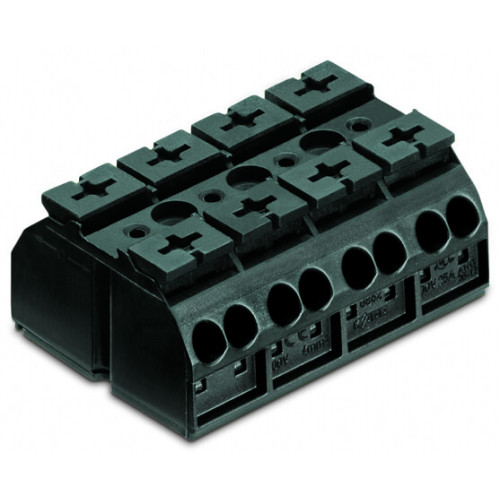

862-534

4-conductor chassis-mount terminal strip, without ground contact, 4-pole, 1 snap-in foot per pole, 4

Manufacturer's No: 862-534     Manufacturer: WAGO
4-conductor chassis-mount terminal strip, without ground contact, 4-pole, 1 snap-in foot per pole, 4

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£2.00
  • 4-conductor chassis-mount terminal strip
  • 4-pole without ground contact
  • Each pole has 1 snap-in foot
  • Terminal strip accommodates wires up to 4 mm² (4.00 mm²)
  • Color: black

Accessories

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Back Order

Ferrule, Sleeve For 0.5 mm / Awg 22 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-141
Price £0.02
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-143
Price £0.02
Back Order

Comb-Style Jumper Bar, For Conductor Entry Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 862-482
Price £1.50
Back Order


Product

Manufacturer Material ID -
862-534
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
200
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
35 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
48 Millimetre
Height at lowest possible mounting height -
21.4 Millimetre
Connection position -
Sideways
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
22.3 Millimetre
Halogen free -
Height -
35 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
4
Number of poles -
4
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
48 Millimetre
