869-321

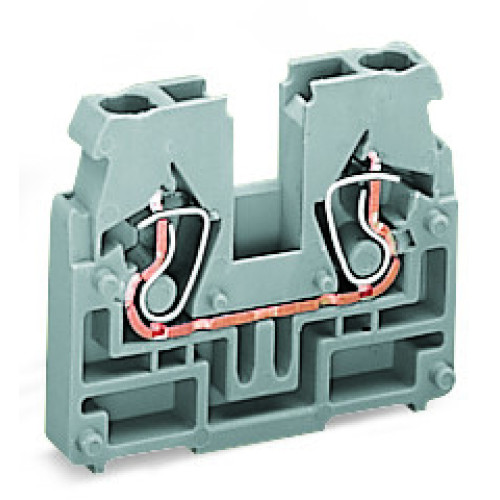

2-conductor terminal block, without push-buttons, without snap-in mounting foot, gray

Manufacturer's No: 869-321     Manufacturer: WAGO
2-conductor terminal block, without push-buttons, without snap-in mounting foot, gray

Availability Available to order

£0.83
  • Terminal block with 2 conductors

  • 1-pole design

  • CAGE CLAMP® technology

  • Wire size capacity: 2.5 mm²

  • Color: Gray

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Lockout caps, for covering unused clamping units, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-668
Price £0.04
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-472
Price £0.11
Available to order

Lockout caps, for covering unused clamping units, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-669
Price £0.04
Available to order


Product

Manufacturer Material ID -
869-321
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
85369010
Minimum Order Quantity -
None
RoHs Compliance -
products/020000060001f0d1000300b6.jpg
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
33.4 Millimetre
Operation temperature -
-30 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
27.6 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
27.6 Millimetre
Halogen free -
Height -
33.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
1
Operating temperature -
-30 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability Available to order

£0.83
