870-684

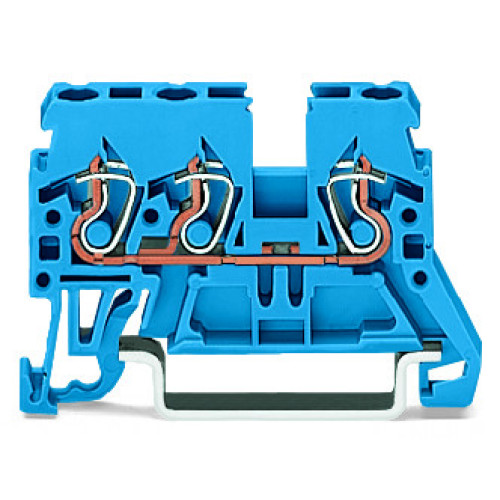

3-conductor through terminal block, 2.5 mm², suitable for Ex i applications, blue

Manufacturer's No: 870-684     Manufacturer: WAGO
3-conductor through terminal block, 2.5 mm², suitable for Ex i applications, blue

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.05
  • 3-conductor through terminal block
  • Suitable for Ex i applications
  • CAGE CLAMP® technology
  • Wire size: 2.5 mm²
  • Color: Blue
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Side and center marking for easy identification


Product

Manufacturer Material ID -
870-684
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Length -
49 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
27.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
27.5 Millimetre
Explosion-tested version 'Ex e' -
Height -
49 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.05
