870-907

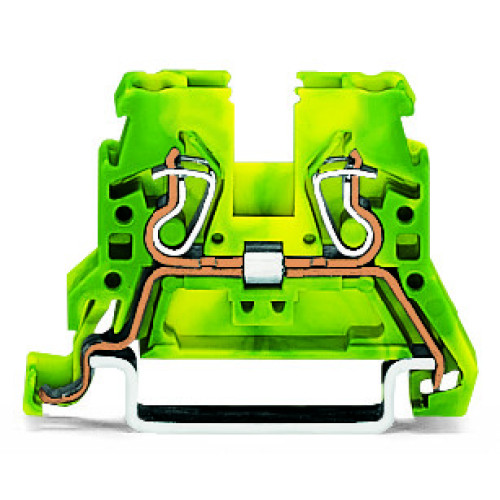

2-conductor ground terminal block, 2.5 mm², lateral marker slots, green-yellow

Manufacturer's No: 870-907     Manufacturer: WAGO
2-conductor ground terminal block, 2.5 mm², lateral marker slots, green-yellow

Availability In Stock

£3.06
  • 2-conductor ground terminal block
  • Accommodates wire size of 2.5 mm²
  • Features lateral marker slots
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes CAGE CLAMP® technology
  • Color coded in green-yellow


Product

Manufacturer Material ID -
870-907
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
None
UNSPSC -
39121410

Technical Specification

Length -
44.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
27.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
27.5 Millimetre
Height -
44.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability In Stock

£3.06
