880-901

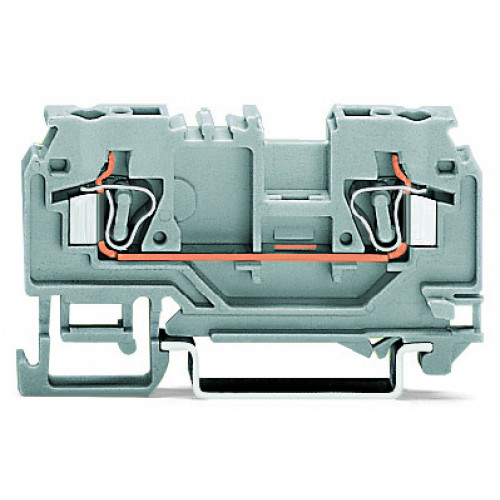

2-conductor through terminal block, 4 mm², with test port, gray

Manufacturer's No: 880-901     Manufacturer: WAGO
2-conductor through terminal block, 4 mm², with test port, gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.50

£1.22
  • Terminal block for DIN-rail 35 x 15 and 35 x 7.5
  • 2-conductor with CAGE CLAMP® technology
  • Accommodates wires up to 4.00 mm²
  • Features a test port and center marking
  • Does not include shield contact
  • Color: Gray


Product

Manufacturer Material ID -
880-901
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Length -
58.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
29 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
29 Millimetre
Height -
58.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
25 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.50

£1.22
