885-308

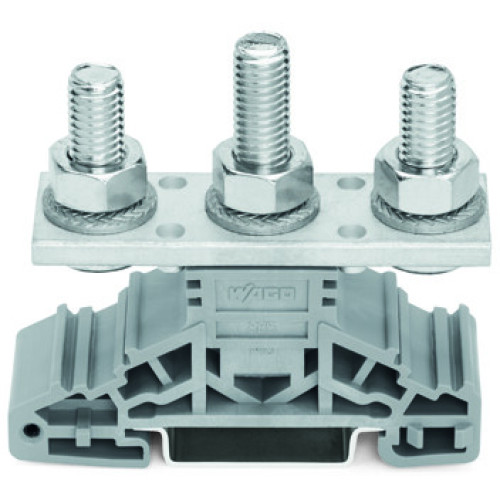

Stud terminal block, lateral marker slots, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 885-308     Manufacturer: WAGO
Stud terminal block, lateral marker slots, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£15.75
  • Stud terminal block
  • 3 studs, M8
  • For DIN-rail 35 x 15 and 35 x 7.5
  • Lateral marker slots
  • 50.00 mm²
  • Color: Gray


Product

Manufacturer Material ID -
885-308
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
Minimum Order Quantity -
20
UNSPSC -
32151705

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
67 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
22.8 Millimetre
Height at lowest possible mounting height -
56.7 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Depth -
56.7 Millimetre
Height -
67 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Bolt connection
Type of electrical connection 2 -
Bolt connection
Width -
22.8 Millimetre
