890-262

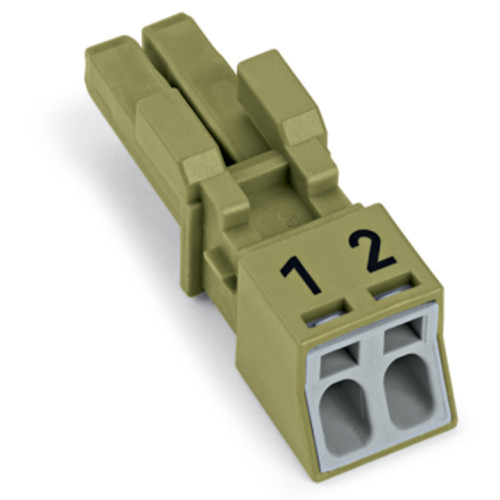

Socket, 2-pole, Cod. B, light green

Manufacturer's No: 890-262     Manufacturer: WAGO
Socket, 2-pole, Cod. B, light green

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Socket type: 2-pole
  • Cod. B
  • Wire size: 1.50 mm²
  • Color: Light green


Product

Manufacturer Material ID -
890-262
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
PL
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
1, 2
Colour coding/contact insert -
Green
Connection cross section (fine-strand) -
0.25 Square millimetre
Connection cross section (solid-core) -
0.25 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.00278 Kilowatthour
Halogen free -
Height -
11.7 Millimetre
Housing material -
Polyamide (PA)
Length -
34.1 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
1
Number of poles -
2
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
10.4 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
