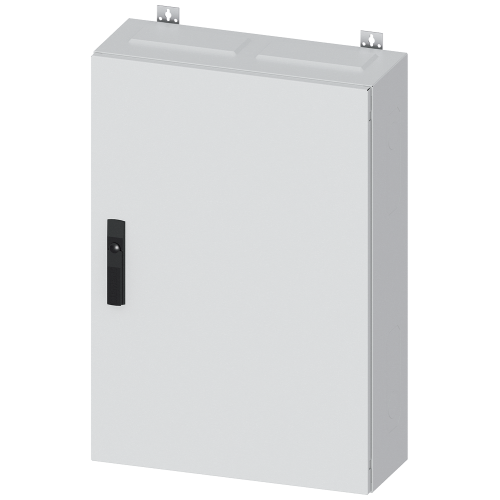

8GK11023KK22

wall-mounted cabinet, flat pack

Manufacturer's No: 8GK1102-3KK22     Manufacturer: Siemens
wall-mounted cabinet, flat pack

Availability On Request

£430.81
  • Wall-mounted cabinet
  • Flat Pack design
  • IP43 rated for protection
  • Dimensions: 800 mm (H) x 550 mm (W) x 210 mm (T)
  • RAL 9016 color
Product video
Product video


Product

Manufacturer Material ID -
8GK1102-3KK22
Net Weight -
15.50kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Mounting method -
Other
Type of covering -
Optional
Cover model -
None
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Degree of protection (IP rating) -
IP43
Depth -
210 Millimetre
Extension possible -
Height -
800 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK09
Nominal current (In) -
400 Ampere
Number of openings for flange plates -
4
Number of rows -
10
RAL number -
9016
Recess depth -
210 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Width -
550 Millimetre
Width in number of modular spacings -
120

Availability On Request

£430.81
