8WA10111MH11

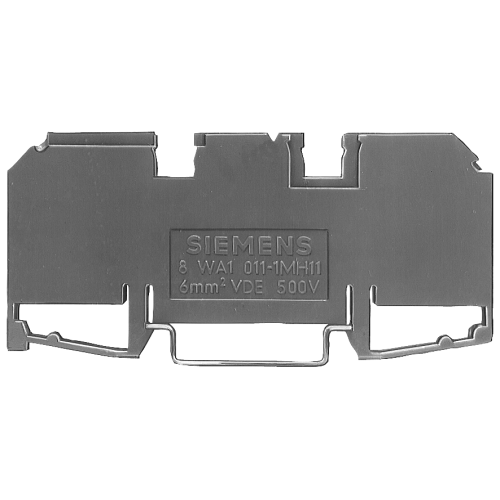

Isolating terminal thermoplast screw-type terminal two-sided without test socket, 8 mm, size 6

Manufacturer's No: 8WA1011-1MH11     Manufacturer: Siemens
Isolating terminal thermoplast screw-type terminal two-sided without test socket, 8 mm, size 6

Availability On Request

POA

This product has been superseded by

8WH10007AH00

Please check compatibility before purchasing.

  • Terminal type: Screw-type
  • Thermoplast material
  • Two-sided without test socket
  • Size: 6
  • Diameter: 8 mm
  • Discontinued since: 09/10/23
  • Successor model: 8WH10007AH00


Product

Manufacturer Material ID -
8WA1011-1MH11
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
39121410

Technical Specification

Length -
83 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
8 Millimetre
Height at lowest possible mounting height -
33 Millimetre
Connection position -
Sideways
Colour -
Beige
Connectable conductor cross section fine-strand with cable end sleeve -
6 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Height -
33 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
41 Ampere
Rated voltage -
500 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Type of slitting -
Sliding

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10007AH00

Please check compatibility before purchasing.
