8WA10113JF16

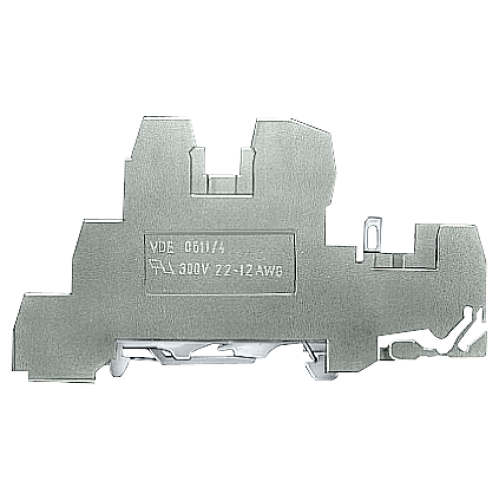

INSTA terminal, 6 mm, size 2.5 PE, L, L

Manufacturer's No: 8WA1011-3JF16     Manufacturer: Siemens
INSTA terminal, 6 mm, size 2.5 PE, L, L

Availability On Request

POA

This product has been superseded by

8WH60014HF00

Please check compatibility before purchasing.

  • Terminal type: INSTA
  • Wire size: 6 mm
  • Conductor size: 2.5 mm²
  • Product discontinued since: 09/10/23
  • Successor model: 8WH60014HF00


Product

Manufacturer Material ID -
8WA1011-3JF16
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
87 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
6 Millimetre
Height at lowest possible mounting height -
42.5 Millimetre
Connection position -
Sideways
Basic colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Height -
42.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of potentials -
3
Operating temperature -
55 Degrees celsius
PE-function -
Rated current In -
24 Ampere
Rated voltage -
400 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH60014HF00

Please check compatibility before purchasing.
