8WA10112DG11

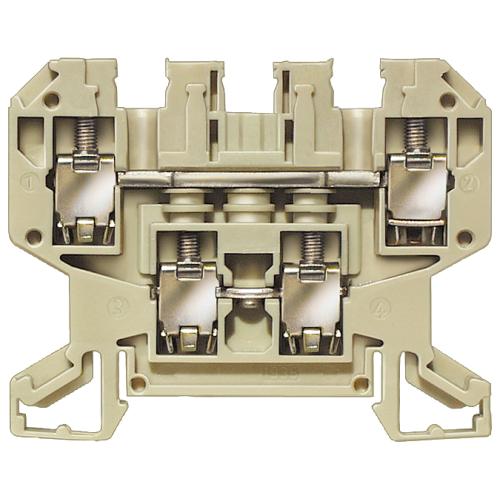

Two-tier terminal thermoplast Screw terminal on both sides 2-pole, beige, 6.5mm, Sz. 4 2 separate co

Manufacturer's No: 8WA1011-2DG11     Manufacturer: Siemens
Two-tier terminal thermoplast Screw terminal on both sides 2-pole, beige, 6.5mm, Sz. 4 2 separate co

Availability On Request

POA
  • Two-tier terminal thermoplast
  • Screw terminal on both sides
  • 2-pole, beige, 6.5mm, Sz. 4
  • Two separate connections


Product

Manufacturer Material ID -
8WA1011-2DG11
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
64 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
6.5 Millimetre
Height at lowest possible mounting height -
45 Millimetre
Connection position -
Sideways
Basic colour -
Beige
Connectable conductor cross section fine-strand with cable end sleeve -
4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
4 Square millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
4 Square millimetre
Height -
45 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of potentials -
2
Operating temperature -
55 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
690 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
