8WA1305

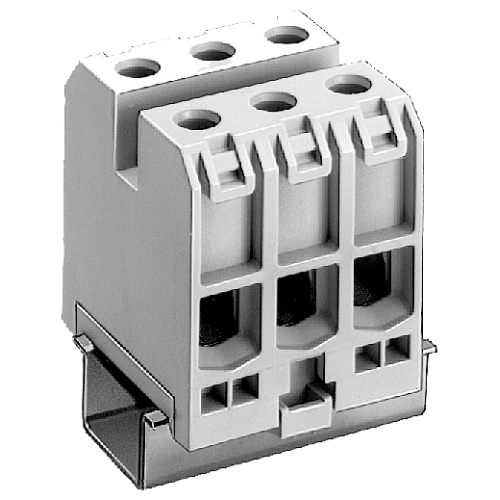

Through-type terminal thermoplast Screw terminal on both sides Block 3 terminals 48 mm, Sz. 35

Manufacturer's No: 8WA1305     Manufacturer: Siemens
Through-type terminal thermoplast Screw terminal on both sides Block 3 terminals 48 mm, Sz. 35

Availability On Request

POA

This product has been superseded by

8WH10000AM00

Please check compatibility before purchasing.

  • Terminal type: Through-type terminal thermoplast
  • Screw terminal on both sides
  • Block with 3 terminals
  • Size: 48 mm, Sz. 35
  • Discontinued since: 09/10/23
  • Successor model: 3 x 8WH10000AM00


Product

Manufacturer Material ID -
8WA1305
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
39121410

Technical Specification

Length -
53 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
26 Millimetre
Connection position -
Sideways
Colour -
Beige
Connectable conductor cross section fine-strand with cable end sleeve -
6 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
10 Square millimetre
Connectable conductor cross section solid-core -
4 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10000AM00

Please check compatibility before purchasing.
