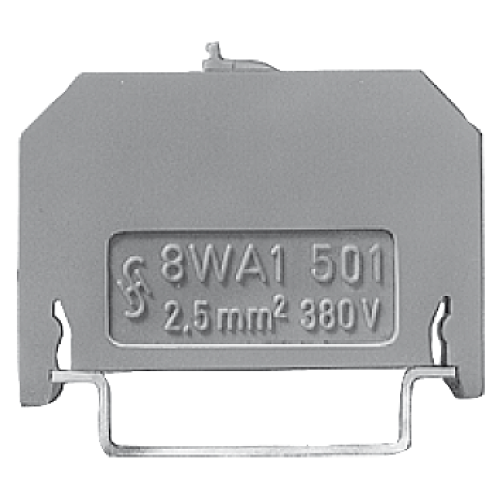

8WA1501

Through-type terminal sectionalizing feature screw-type terminal two-sided 6 mm size 2.5

Manufacturer's No: 8WA1501     Manufacturer: Siemens
Through-type terminal sectionalizing feature screw-type terminal two-sided 6 mm size 2.5

Availability On Request

POA

This product has been superseded by

8WH10006CG00

Please check compatibility before purchasing.

  • Screw-type terminal
  • Through-type terminal sectionalizing feature
  • Two-sided 6 mm size 2.5
  • Discontinued since: 09/10/23
  • Successor: 8WH10006CG00


Product

Manufacturer Material ID -
8WA1501
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Length -
41 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
6 Millimetre
Height at lowest possible mounting height -
29 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre
Height -
29 Millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Material insulation body -
Other
Mounting method -
Other
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
10 Ampere
Rated voltage -
300 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Type of slitting -
Other
With integrated test socket -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10006CG00

Please check compatibility before purchasing.
