8WH10000AK01

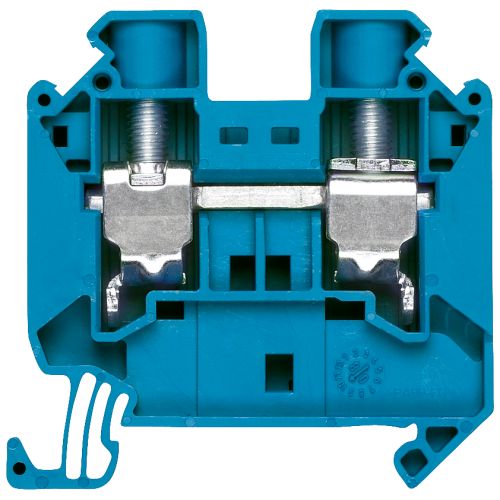

Through-type terminal with screw connection, terminal size 16.0 mm2 terminal width 12.0 mm

Manufacturer's No: 8WH1000-0AK01     Manufacturer: Siemens
Through-type terminal with screw connection, terminal size 16.0 mm2 terminal width 12.0 mm

Availability On Request

£3.41
  • Terminal type: Screw terminal
  • Connection type: Through-type
  • Wire size capacity: 16 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH1000-0AK01
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
1 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
1 Square millimetre
Connectable conductor cross section solid-core -
1.5 Square millimetre
Depth -
54.4 Millimetre
Explosion-tested version 'Ex e' -
Height -
55.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
76 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

£3.41
