8WH10000CG07

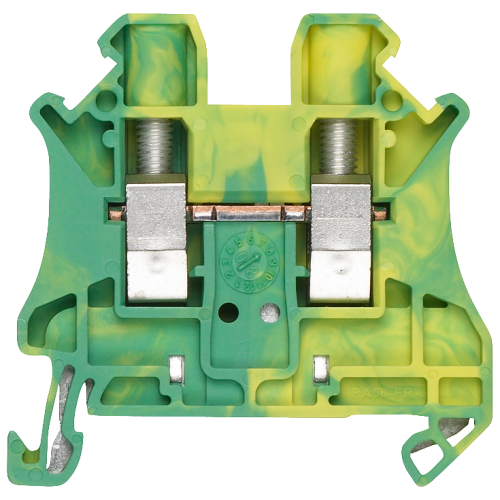

Through-type PE terminal with screw terminal Terminal width 6.2 mm Color green-yellow Cross-section:

Manufacturer's No: 8WH1000-0CG07     Manufacturer: Siemens
Through-type PE terminal with screw terminal Terminal width 6.2 mm Color green-yellow Cross-section:

Availability Back Order

£4.03
  • Terminal type: Screw terminal
  • Terminal size: 4 mm²
  • Color: Green-yellow
  • Features PE/PEN terminal

Accessories

cover Terminal size 2.5-10.0 mm2 Color gray

Product Code - 8WH90001PA00
Price £1.16
Back Order


Product

Manufacturer Material ID -
8WH1000-0CG07
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Rated voltage -
- Volt
Rated current In -
- Ampere
Length -
47.7 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
6.2 Millimetre
Height at lowest possible mounting height -
47.5 Millimetre
Connection position -
Sideways
Material insulation body -
Other
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
46.85 Millimetre
Height -
48 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
6.15 Millimetre

Availability Back Order

£4.03
