8WH10000CK07

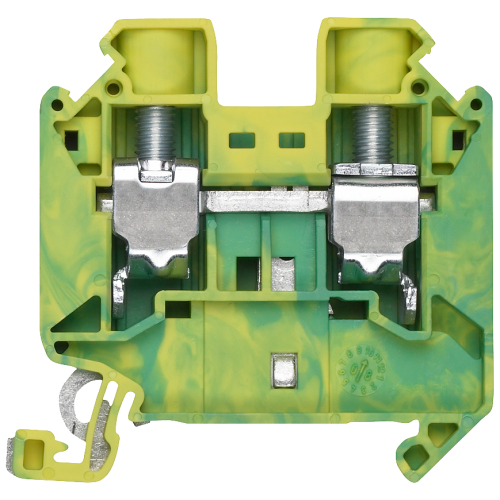

Through-type PE terminal with screw terminal Terminal width 12.0 mm Color green-yellow Cross-section

Manufacturer's No: 8WH1000-0CK07     Manufacturer: Siemens
Through-type PE terminal with screw terminal Terminal width 12.0 mm Color green-yellow Cross-section

Availability On Request

£6.80
  • Terminal type: Screw terminal
  • Terminal size: 16 mm²
  • Color: Green-yellow
  • Additional terminal type: PE/PEN terminal


Product

Manufacturer Material ID -
8WH1000-0CK07
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
TR
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Rated voltage -
- Volt
Rated current In -
- Ampere
Length -
55.3 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
12 Millimetre
Height at lowest possible mounting height -
55 Millimetre
Connection position -
Sideways
Material insulation body -
Other
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
1 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
1.5 Square millimetre
Depth -
54.35 Millimetre
Height -
55.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
12.15 Millimetre

Availability On Request

£6.80
