8WH10205LF00

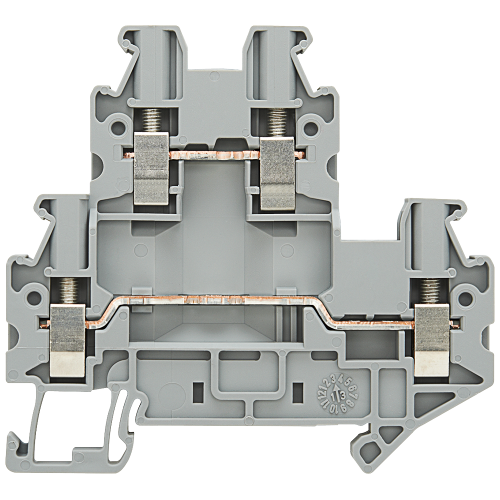

Two-tier terminal for components, 2.5 mm2 screw fixing, gray

Manufacturer's No: 8WH1020-5LF00     Manufacturer: Siemens
Two-tier terminal for components, 2.5 mm2 screw fixing, gray

Availability Back Order

£8.71
  • Terminal type: Screw terminal
  • Two-tier design
  • Diode terminal unequipped
  • Wire size: 2.5 mm²
  • Color: Gray

Accessories

cover Terminal size 2.5/4.0 mm2 Color gray

Product Code - 8WH90001QA00
Price £1.78
Back Order


Product

Manufacturer Material ID -
8WH1020-5LF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Length -
69.9 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
2.5 Millimetre
Height at lowest possible mounting height -
65 Millimetre
Material insulation body -
Thermoplastic
Connection position -
Sideways
Rated current In -
24 Ampere
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
64.3 Millimetre
Height -
69.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
-165 Degrees celsius
Rated voltage -
500 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
7.72 Millimetre

Availability Back Order

£8.71
