8WH20000AJ00

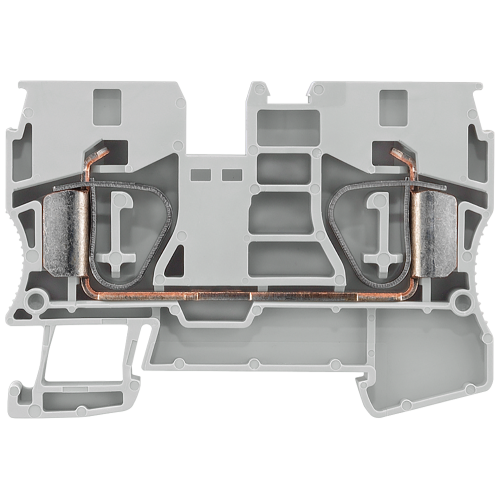

Through-type terminals with spring-loaded connection, Cross-section: 1.5-10 mm2, Width: 10mm, Color:

Manufacturer's No: 8WH2000-0AJ00     Manufacturer: Siemens
Through-type terminals with spring-loaded connection, Cross-section: 1.5-10 mm2, Width: 10mm, Color:

Availability Available to order

£3.28
  • Terminal type: Spring-loaded through-type
  • Wire size capacity: 10 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-0AJ00
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
- Millimetre
Height at lowest possible mounting height -
- Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
10.2 Millimetre
Connection position -
Above
Connectable conductor cross section multi-wired -
16 Square millimetre
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
49.6 Millimetre
Explosion-tested version 'Ex e' -
Height -
71.34 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
57 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability Available to order

£3.28
