8WH20000CF07

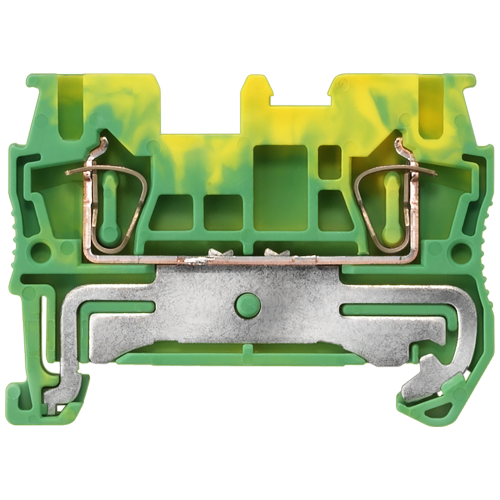

Protective conductor terminal with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2

Manufacturer's No: 8WH2000-0CF07     Manufacturer: Siemens
Protective conductor terminal with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2

Availability On Request

£4.65
  • Terminal type: Spring-loaded
  • Terminal size: 2.5 mm²
  • Terminal color: Green-yellow
  • Features PE/PEN terminal
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-0CF07
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
48.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
36.8 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.25 Millimetre
Height -
49.13 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5.15 Millimetre

Availability On Request

£4.65
