8WH20006CF00

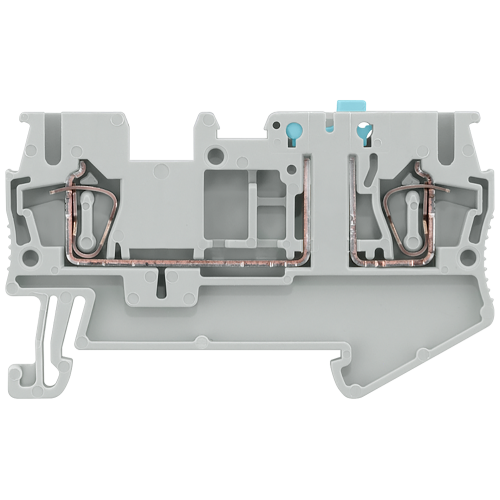

Instrument isolating terminal with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2

Manufacturer's No: 8WH2000-6CF00     Manufacturer: Siemens
Instrument isolating terminal with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2

Availability On Request

£4.23
  • Terminal type: Spring-loaded isolating blade
  • Wire size: 2.5 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-6CF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Operation temperature -
- Degrees celsius
Length -
60.5 Millimetre
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
43 Millimetre
Connection position -
Above
Type of electrical connection 2 -
Spring clamp connection
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
36.5 Millimetre
Height -
60.43 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-105 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
400 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Spring clamp connection
Type of slitting -
Other
Width -
5.15 Millimetre

Availability On Request

£4.23
