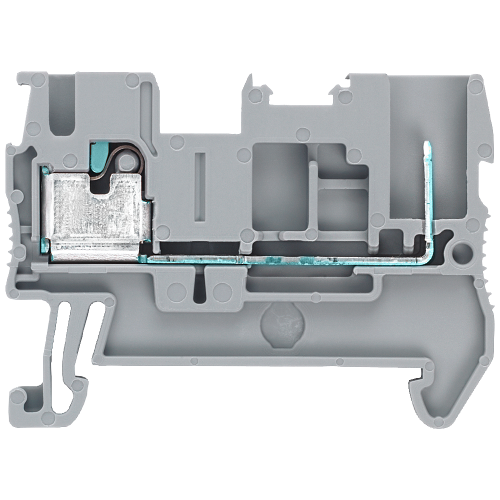

8WH51002PF00

hybrid 2.5 mm2, 2.5 mm2, 5.2 mm width gray COMBI and IPO connection

Manufacturer's No: 8WH5100-2PF00     Manufacturer: Siemens
hybrid 2.5 mm2, 2.5 mm2, 5.2 mm width gray COMBI and IPO connection

Availability Available to order

POA
  • Terminal type: Combination connection
  • Hybrid design with 1x iPo and 2x combination plug-in
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH5100-2PF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Rated voltage -
- Volt
Rated current In -
- Ampere
Length -
48.5 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
36.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.3 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Spring clamp connection

Availability Available to order

POA
