8WH60010BG01

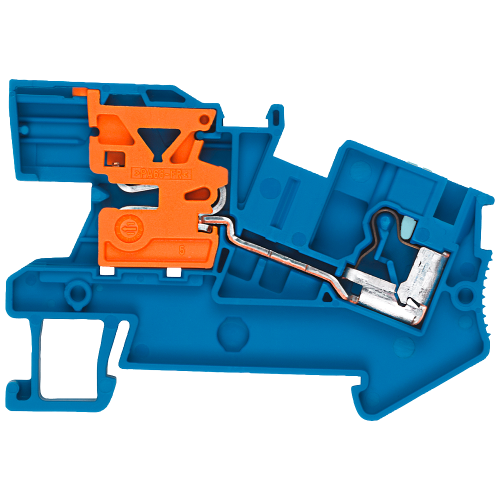

INSTA through-type terminal 4 mm2, 6.2 mm wide blue N disconnect

Manufacturer's No: 8WH6001-0BG01     Manufacturer: Siemens
INSTA through-type terminal 4 mm2, 6.2 mm wide blue N disconnect

Availability On Request

£3.66
  • Terminal for iPo plug-in
  • Installation terminal
  • N conductor isolating terminal
  • 4 mm² capacity
  • Color: Blue


Product

Manufacturer Material ID -
8WH6001-0BG01
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Colour -
Blue
Rated voltage -
250 Volt
Length -
66 Millimetre
Operation temperature -
55 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Width/grid dimension -
6.2 Millimetre
Height at lowest possible mounting height -
46.3 Millimetre
Closing plate required -
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Number of levels -
1
Number of clamp positions per level -
2
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Material insulation body -
Thermoplastic
Connection position -
Above
Rated current In -
32 Ampere
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Mounting method -
Other
