8WH60030HE00

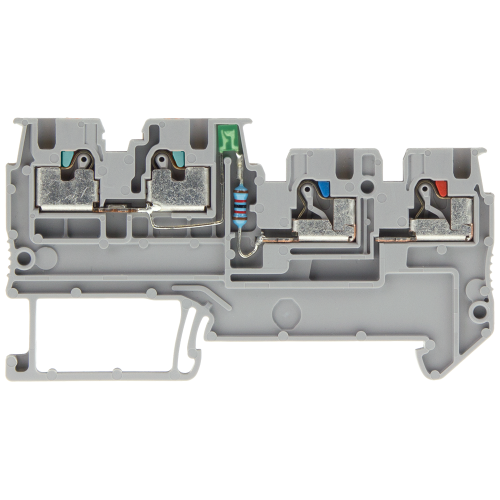

Initiator terminal 1.5 mm2 for 3-wire including PE

Manufacturer's No: 8WH6003-0HE00     Manufacturer: Siemens
Initiator terminal 1.5 mm2 for 3-wire including PE

Availability On Request

£6.99
  • Terminal with 4 clamping points
  • Initiator terminal with PE
  • Plug-in terminal for iPod
  • Wire size: 1.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6003-0HE00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Cross connectable -
Height -
41.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per level -
2
Number of levels -
3
Rated current In -
13.5 Ampere
Rated voltage -
250 Volt
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Plug-in connection
Width -
3.5 Millimetre
With PE connection -
With shield connection -

Availability On Request

£6.99
