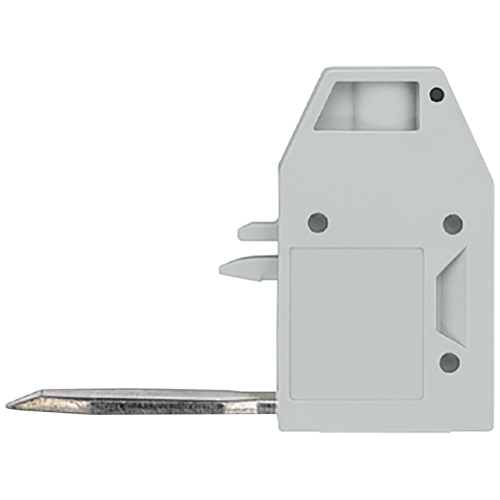

8WH91200CA00

tap-off term., cross-sec. 10mm2 for high-current terminals, w/ 150-240mm2, fully insulated, enables

Manufacturer's No: 8WH9120-0CA00     Manufacturer: Siemens
tap-off term., cross-sec. 10mm2 for high-current terminals, w/ 150-240mm2, fully insulated, enables

Availability Back Order

£8.74
  • Tap-off terminal for high-current applications
  • Suitable for wires with a cross-section of 150-240 mm²
  • Accommodates wires up to 10 mm²
  • Fully insulated for safety
  • Rated for up to 1000 V
  • Color: Gray

Accessories



Product

Manufacturer Material ID -
8WH9120-0CA00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Rated voltage -
- Volt
Length -
- Millimetre
Height at lowest possible mounting height -
- Millimetre
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Operation temperature -
-25 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
Other
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Other
Number of levels -
1
Number of clamp positions per level -
1
Connectable conductor cross section fine-strand with cable end sleeve -
150 Square millimetre
Material insulation body -
Other
Connection position -
Above
Rated current In -
57 Ampere
Colour -
Grey
Mounting method -
Other
Type of electric connection -
Other
Width/grid dimension -
10 Millimetre

Availability Back Order

£8.74
