2CMA170518R1000

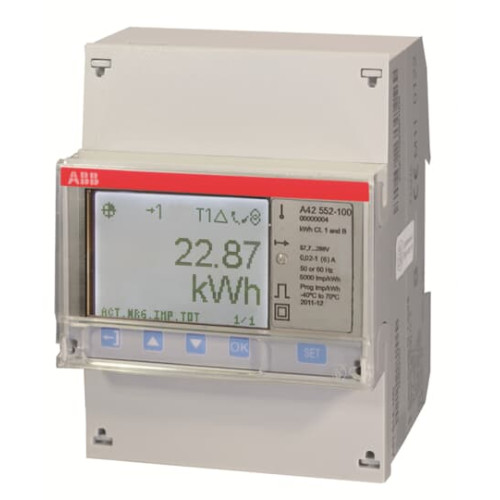

A42 552-120, Energy meter'Platinum', Modbus RS485, Single-phase, 6 A

Manufacturer's No: A42 552-120     Manufacturer: ABB
A42 552-120, Energy meter'Platinum', Modbus RS485, Single-phase, 6 A

Availability On Request

£545.51
  • Model: A42 552-120 Energy Meter 'Platinum'
  • Communication: Modbus RS485
  • Phase: Single-phase
  • Current: 6 A
  • Display: Large backlit pixel-oriented display
  • Application: Industry, commercial buildings
  • Voltage: Wide range suitable for 3 or 4 wire systems
  • Features: Instrumentation values, 25 alarms, event logs
  • Energy Measurement: Active and reactive energy
  • Registers: Import/export energy in different registers, resettable register for intermediate values

Read more

  • Additional Features: Internal clock for tariff shift, min/max demand, event log with timestamps
  • Load Profile: 8 channel load profile
  • Inputs/Outputs: Four programmable inputs/outputs
  • Harmonics: Up to the 16th harmonics for pulses or alarms
  • Communication Protocol: RS-485 Modbus RTU or EQ Bus
  • Accuracy Class: 0.5 (Class C for MID meters)
  • Approvals: IEC, MID approved and verified
  • Version: Available for use in 690 V applications


Product

Manufacturer Material ID -
A42 552-120
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
90283011
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41113600

Technical Specification

-
ABB
Nominal voltage (Un) L-L -
- Volt
Degree of protection (NEMA) -
UN
Model -
Measurement transformer
Suitable for -
Purchase/supply
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
RS-485
Energy type -
Effective power and blind power
Pulse rate -
5000 Pulse constant
Nominal voltage (Un) N-L -
57.7 Volt
Accuracy class -
C
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
Other
Max. current (Imax) -
6 Ampere
Measuring type load profile -
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
6 Ampere
Number of positions total (counter) -
7
Pole type -
Single phase
Power consumption -
0.801 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff control -
Internal/external
Tariff type -
Multi-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
70 Millimetre
Width in number of modular spacings -
4
ABB
