2CMA170545R1000

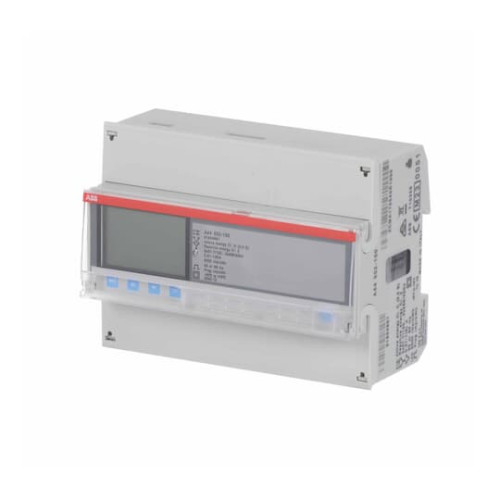

A44 552-100, Energy meter'Platinum', Modbus RS485, Three-phase, 1 A

Manufacturer's No: A44 552-100     Manufacturer: ABB
A44 552-100, Energy meter'Platinum', Modbus RS485, Three-phase, 1 A

Availability Back Order

£639.62
  • Energy meter 'Platinum' model A44 552-100
  • Modbus RS485 communication
  • Three-phase meter suitable for industry and commercial buildings
  • Wide voltage range for use in 3 or 4 wire systems
  • Large backlit pixel-oriented display
  • Measures active and reactive energy
  • 25 alarms and event logs
  • Import/export energy in different registers
  • Resettable register for intermediate values
  • Internal clock for tariff shift and demand tracking

Read more

  • 8 channel load profile
  • Four programmable inputs/outputs
  • Up to 16th harmonics for pulses or alarms
  • Accuracy class 0.5 (Class C for MID meters)
  • IEC and MID approved + verified


Product

Manufacturer Material ID -
A44 552-100
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
90283019
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

-
ABB
Degree of protection (NEMA) -
UN
Model -
Measurement transformer
Suitable for -
Purchase/supply
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
RS-485
Energy type -
Effective power and blind power
Pulse rate -
5000 Pulse constant
Nominal voltage (Un) N-L -
57.7 Volt
Nominal voltage (Un) L-L -
100 Volt
Accuracy class -
C
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
Other
Max. current (Imax) -
6 Ampere
Measuring type load profile -
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
6 Ampere
Number of positions total (counter) -
7
Pole type -
Four conductor
Power consumption -
0.801 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff control -
Internal/external
Tariff type -
Multi-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
123 Millimetre
Width in number of modular spacings -
7
ABB

Availability Back Order

£639.62
