50135460

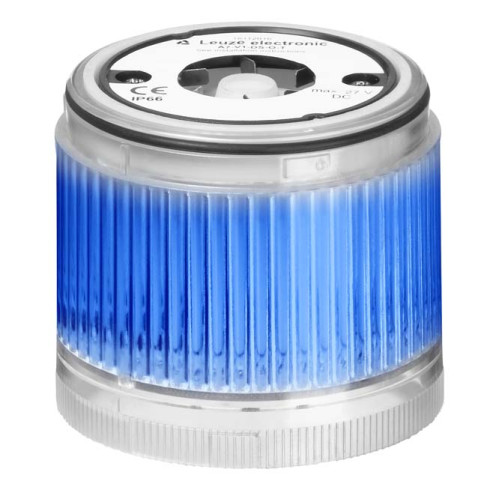

The Signaling column element from . Signaling: Optical; Current consumption, max.: 40 mA; Design: Cylindrical; Diameter: 70 mm; F

Manufacturer's No: A7-V1-DS-B-T     Manufacturer: Leuze
The Signaling column element from .  Signaling: Optical; Current consumption, max.: 40 mA; Design: Cylindrical; Diameter: 70 mm; Fastening: Bayonet system; Illuminant: LED/24V; Signal image: Continu

Availability Back Order

£28.00
  • Signaling: Optical
  • Design: Cylindrical with a diameter of 70 mm
  • Fastening: Bayonet system
  • Illuminant: LED/24V providing continuous blue light
  • Angle of radiation: 360°
  • Ambient temperature: -10 to 60 °C
  • Degree of protection: IP 66
  • Current consumption, max.: 40 mA

Accessories



Product

Manufacturer Material ID -
A7-V1-DS-B-T
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
IN
UNSPSC -
39121534

Technical Specification

Lamp type -
UN
Operating voltage at AC 50 Hz -
- Volt
Operating voltage at AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Colour housing -
Blue
Degree of protection (IP) -
IP66
Colour -
Blue
Degree of protection (IP rating) -
IP66
Function -
Continuous light
Housing colour -
Black
Light source type -
LED
Operating voltage at DC -
24 Volt
Outer diameter -
70 Millimetre
Voltage type -
DC
Thumbnail of product picture -
Leuze

Availability Back Order

£28.00
