50135466

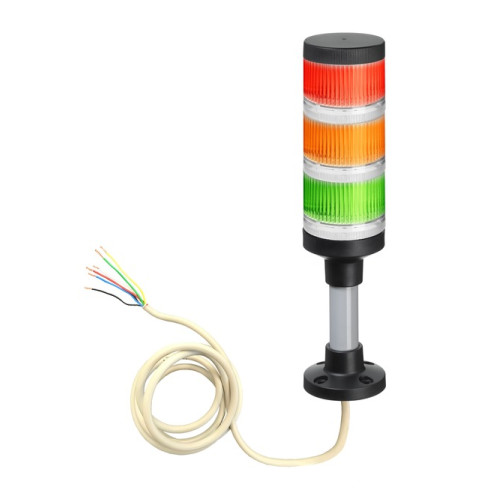

The Signaling column from . Signaling: Optical; Connection: Terminal, 6 -wire, 1,500 mm, Tension spring technology; Design: Cylind

Manufacturer's No: A7-V1-MP1-DS-ROG-T-100     Manufacturer: Leuze
The Signaling column from . Signaling: Optical; Connection: Terminal, 6 -wire, 1,500 mm, Tension spring technology; Design: Cylindrical; Diameter: 70 mm; Illuminant: LED/24V; Lens modules: 3 pieces

Availability On Request

£92.00
  • Signaling: Optical
  • Current consumption: 130 mA (max)
  • Connection: 6-wire, 1,500 mm
  • Design: Cylindrical with a diameter of 70 mm
  • Illuminant: LED/24V
  • Lens modules: 3 pieces, ready-made
  • Signal image: Continuous light with a 360° angle of radiation
  • Module colors: Green, orange, red (ascending)
  • Ambient temperature: -10 to 60 °C
  • Degree of protection: IP 66

Accessories



Product

Manufacturer Material ID -
A7-V1-MP1-DS-ROG-T-100
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
IN
UNSPSC -
39121534

Technical Specification

Colour -
UN
Function -
UN
Colour housing -
UN
Lamp type -
UN
Operating voltage at AC 50 Hz -
- Volt
Operating voltage at AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Voltage type -
DC
Degree of protection (IP) -
IP66
Rated operating voltage Ue -
24 Volt
Voltage type for actuating -
DC
Thumbnail of product picture -
Colour light 1 -
Green
Colour light 2 -
Orange
Colour light 3 -
Red
Continuous light function -
Degree of protection (IP rating) -
IP66
Depth -
297 Millimetre
Flashing light -
Operating voltage at DC -
24 Volt
Outer diameter -
70 Millimetre
Voltage type (operating voltage) -
DC
Leuze

Availability On Request

£92.00
