1SFL447101R1411

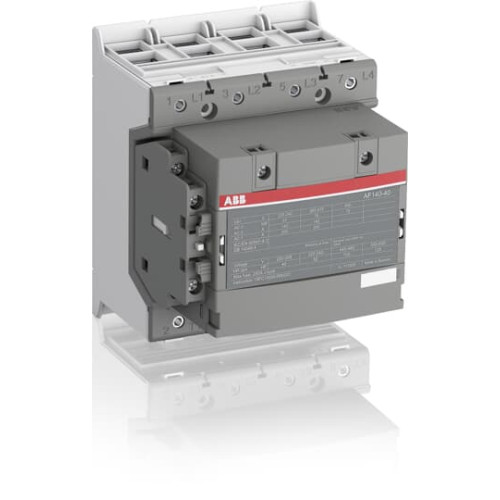

AF140-40-11-14 Contactor

Manufacturer's No: AF140-40-11-14     Manufacturer: ABB
AF140-40-11-14 Contactor

Availability On Request

£572.39
  • AF140-40-11-14 Contactor
  • 4 pole contactor
  • Voltage: 690 V IEC or 600 V UL
  • Pre-mounted auxiliary contacts and double clamp
  • Controls motors up to 75 kW / 400 V AC (AC-3)
  • Switches power circuits up to 200 A (AC-1) or 175 A UL general use
  • Wide control voltage range: 250-500 V 50/60 Hz and DC
  • Built-in surge protection
  • Reduces panel energy consumption
  • Ensures distinct operations in unstable networks

Read more

  • Block type design
  • Easily extendable with add-on auxiliary contact blocks
  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF140-40-11-14
Net Weight -
2.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Depth -
128 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
14.914 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
120 Millimetre
ABB

Availability On Request

£572.39
