1SFL447063R1122

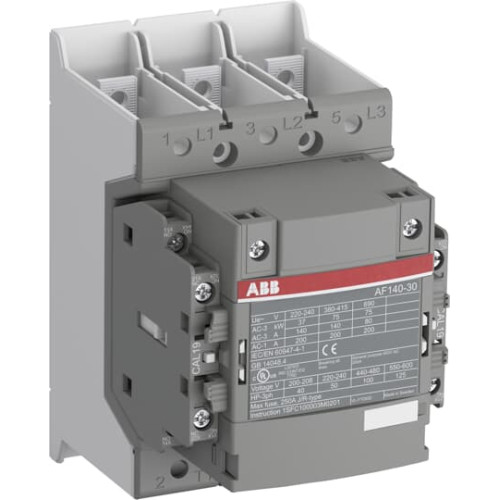

AF140B-30-22-11 Contactor

Manufacturer's No: AF140B-30-22-11     Manufacturer: ABB
AF140B-30-22-11 Contactor

Availability On Request

£644.20
  • AF140B-30-22-11 Contactor
  • 3-pole contactor for Railway applications
  • Suitable for Motor starting, Isolation, By-pass, and Distribution up to 690 V
  • Wide control voltage range: 24-60 V AC, 20-60 V DC
  • Frequency: 50 and 60 Hz


Product

Manufacturer Material ID -
AF140B-30-22-11
Net Weight -
1.58kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Depth -
126 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
37.285 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
90 Millimetre
ABB

Availability On Request

£644.20
