1SFL467001R1411

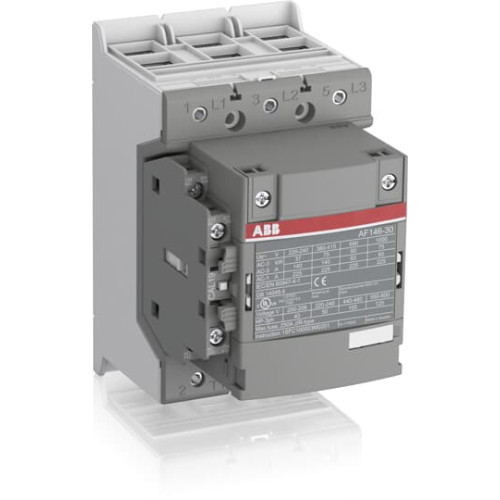

AF146-30-11-14 Contactor

Manufacturer's No: AF146-30-11-14     Manufacturer: ABB
AF146-30-11-14 Contactor

Availability On Request

£638.18
  • AF146-30-11-14 Contactor
  • 3 pole contactor
  • Rated for 1000 V IEC or 600 V UL
  • Pre-mounted auxiliary contacts and double clamp
  • Controls motors up to 75 kW / 400 V AC or 100 hp / 480 V UL
  • Switches power circuits up to 225 A (AC-1) or 200 A UL
  • Wide control voltage range: 250-500 V 50/60 Hz and DC
  • Built-in surge protection
  • Compact design with AF technology
  • Allows for easy extension with add-on auxiliary contact blocks

Read more

  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF146-30-11-14
Net Weight -
1.64kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Depth -
126 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
225 Ampere
Rated operation current Ie at AC-3, 400 V -
146 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
37.285 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
90 Millimetre
ABB

Availability On Request

£638.18
