1SFL547102R1111

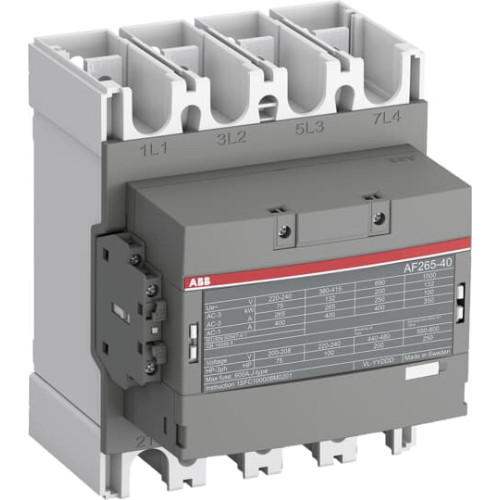

AF265-40-11-11 Contactor

Manufacturer's No: AF265-40-11-11     Manufacturer: ABB
AF265-40-11-11 Contactor

Availability On Request

£1,566.85
  • Model: AF265-40-11-11 Contactor
  • 4 pole contactor
  • Voltage: 1000 V IEC or 600 V UL
  • Suitable for motors up to 132 kW / 400 V AC (AC-3)
  • Switching power circuits up to 400 A (AC-1) or 300 A UL general use
  • Wide control voltage range: 24-60 V 50/60 Hz and 20-60 V DC
  • Surge protection built-in
  • Compact block type design
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF265-40-11-11
Net Weight -
6.38kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Rated operation power at AC-3, 400 V -
132 Kilowatt
Depth -
180 Millimetre
Height -
225 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
400 Ampere
Rated operation current Ie at AC-3, 400 V -
265 Ampere
Rated operation power NEMA -
74.57 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC
Width -
184.4 Millimetre
ABB

Availability On Request

£1,566.85
