1SFL587002R1211

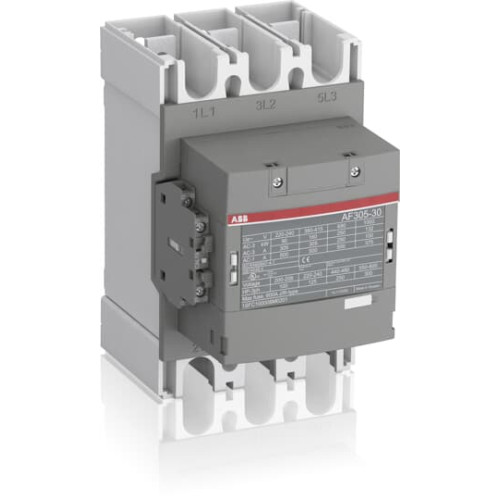

AF305-30-11-12 Contactor

Manufacturer's No: AF305-30-11-12     Manufacturer: ABB
AF305-30-11-12 Contactor

Availability On Request

£1,507.13
  • AF305-30-11-12 Contactor
  • 3 pole contactor
  • 1000 V IEC or 600 V UL
  • Pre-mounted auxiliary contacts and Main Circuit Bars
  • Controls motors up to 160 kW / 400 V AC (AC-3) or 250 hp / 480 V UL
  • Switches power circuits up to 500 A (AC-1) or 400 A UL general use
  • Wide control voltage range: 48-130 V 50/60 Hz and DC
  • Built-in surge protection
  • Compact design with AF technology
  • Easily extendable with add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AF305-30-11-12
Net Weight -
4.64kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Depth -
180 Millimetre
Height -
225 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current Ie at AC-1, 400 V -
500 Ampere
Rated operation current Ie at AC-3, 400 V -
305 Ampere
Rated operation power at AC-3, 400 V -
160 Kilowatt
Rated operation power NEMA -
93.2125 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
140 Millimetre
ABB

Availability On Request

£1,507.13
