1SBL347001R1211

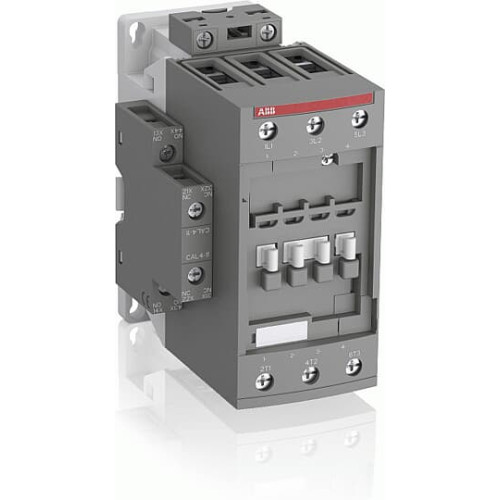

AF40-30-11-12 48-130V50/60HZ-DC Contactor

Manufacturer's No: AF40-30-11-12     Manufacturer: ABB
AF40-30-11-12 48-130V50/60HZ-DC Contactor

Availability Back Order

£248.15
  • AF40-30-11-12 48-130V 50/60Hz-DC Contactor
  • 3 pole contactor
  • Rated for 690V IEC or 600V UL
  • Pre-mounted auxiliary contacts
  • Screw terminals
  • Controls motors up to 18.5 kW / 400V AC or 30 hp / 480V UL
  • Switches power circuits up to 70A AC-1 or 60A UL general use
  • Wide control voltage range: 48-130V 50/60Hz and DC
  • Built-in surge protection
  • Compact design

Read more

  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF40-30-11-12
Net Weight -
1.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Depth -
111 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current Ie at AC-1, 400 V -
70 Ampere
Rated operation current Ie at AC-3, 400 V -
40 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power NEMA -
18.6425 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
67 Millimetre
