1SBL417010R6900

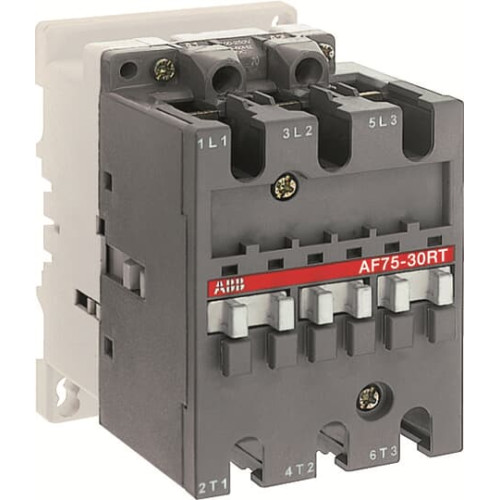

AF75-30-00RT 48-130V 50Hz / 48-130V 60Hz / 48-130V DC Contactor

Manufacturer's No: AF75-30-00RT     Manufacturer: ABB
AF75-30-00RT 48-130V 50Hz / 48-130V 60Hz / 48-130V DC Contactor

Availability Available to order

£788.93
  • AF75-30-00RT 48-130V 50Hz / 48-130V 60Hz / 48-130V DC Contactor
  • Mainly used for controlling 3-phase motors and power circuits up to 690V AC and 220V DC
  • Electronic coil interface accepts wide control voltage range for AC 50/60Hz or DC supplies
  • Suitable for various applications such as bypass, capacitor switching, lighting, and DC power circuits
  • Wide voltage range of 100-250V AC and DC
  • Can manage large voltage variations and withstand voltage interruptions or dips (? 20ms)
  • Distinct closing and opening with reduced power consumption
  • Noise-free operation
  • Block type design with 3 main poles and front/side-mounted auxiliary contact blocks
  • Control circuit can be AC or DC operated

Read more

  • Wide range of accessories available


Product

Manufacturer Material ID -
AF75-30-00RT
Net Weight -
1.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
37 Kilowatt
Number of main contacts as normally open contact -
3
Rated operation current Ie at AC-3, 400 V -
75 Ampere
Rated operation current Ie at AC-1, 400 V -
125 Ampere
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
AC/DC
ABB

Availability Available to order

£788.93
