1SBL417201R7000

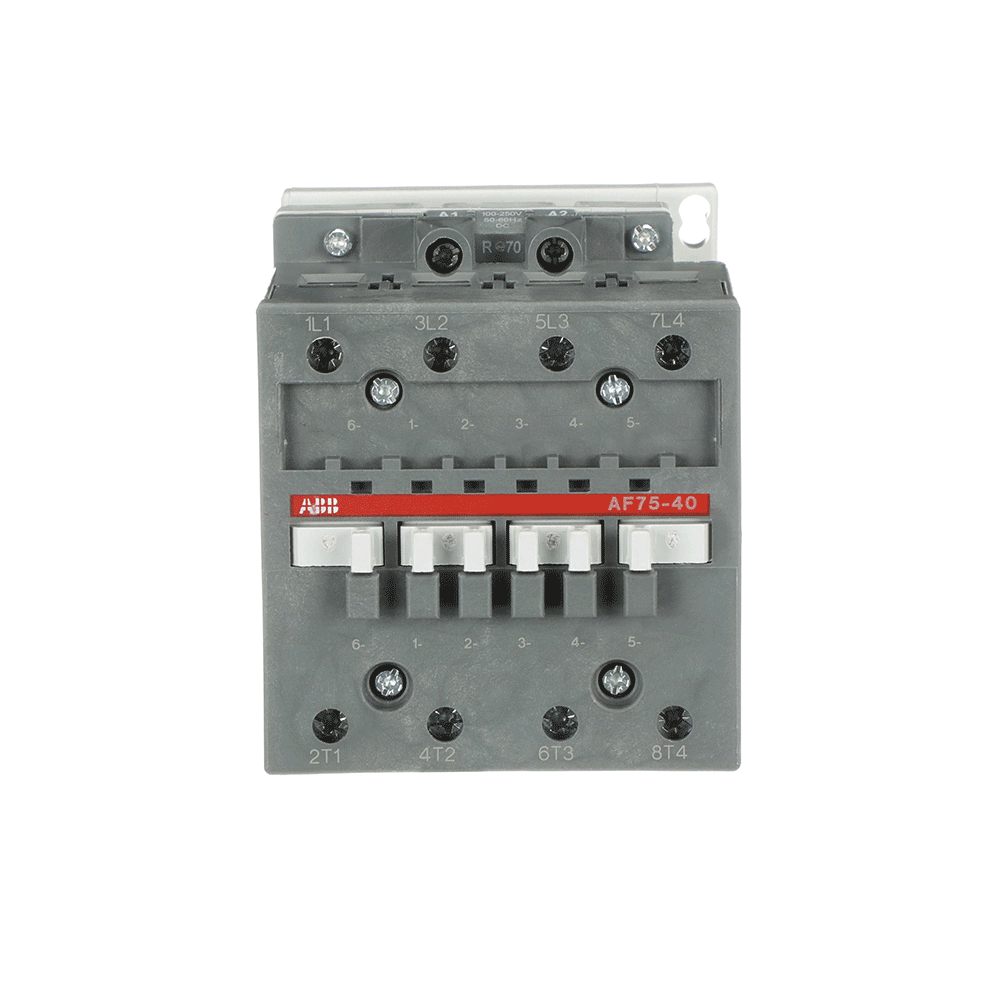

AF75-40-00 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Manufacturer's No: AF75-40-00     Manufacturer: ABB
AF75-40-00 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Availability Available to order

£586.06
  • AF75-40-00 4-pole contactor for controlling non-inductive or slightly inductive loads
  • Suitable for power circuits up to 690V AC and 440V DC
  • Electronic coil interface accepts wide control voltage range
  • Compatible with AC 50/60Hz or DC supplies
  • Wide voltage range: 100-250V AC/DC
  • Can withstand voltage interruptions or dips (? 20 ms)
  • Block type design with 4 N.O. main poles
  • Front and side-mounted add-on auxiliary contact blocks
  • Accessories available for customization


Product

Manufacturer Material ID -
AF75-40-00
Net Weight -
1.42kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Rated operation power at AC-3, 400 V -
37 Kilowatt
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
75 Ampere
Rated operation current Ie at AC-1, 400 V -
125 Ampere
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
ABB

Availability Available to order

£586.06
