1SBL397501R4100

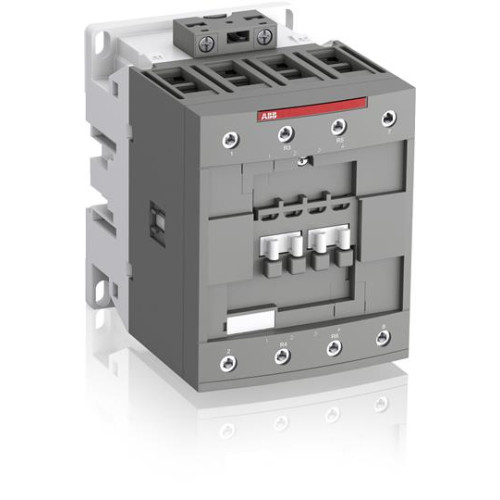

AF80-22-00-41 24-60V50/60HZ Contactor

Manufacturer's No: AF80-22-00-41     Manufacturer: ABB
AF80-22-00-41 24-60V50/60HZ Contactor

Availability On Request

POA
  • AF80-22-00-41 24-60V50/60HZ Contactor
  • 4-pole contactors for power circuits up to 690V AC and 440V DC
  • Suitable for non-inductive or slightly inductive loads like resistance furnaces
  • Electronic coil interface with wide control voltage range of 24-500V 50/60Hz
  • Can manage large control voltage variations without coil change
  • Built-in surge protection, no need for additional surge suppressors
  • Block type design with 2 N.O. + 2 N.C. main poles
  • Front and side-mounted add-on auxiliary contact blocks
  • Mechanically-linked auxiliary contacts compliant with IEC standards
  • AC operated control circuit

Read more

  • Wide range of available accessories


Product

Manufacturer Material ID -
AF80-22-00-41
Net Weight -
1.62kg

Additional Product Information

Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power at AC-3, 400 V -
37 Kilowatt
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
80 Ampere
Rated operation current Ie at AC-1, 400 V -
125 Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
0 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
ABB

Availability On Request

POA
