1SBL136082R3022

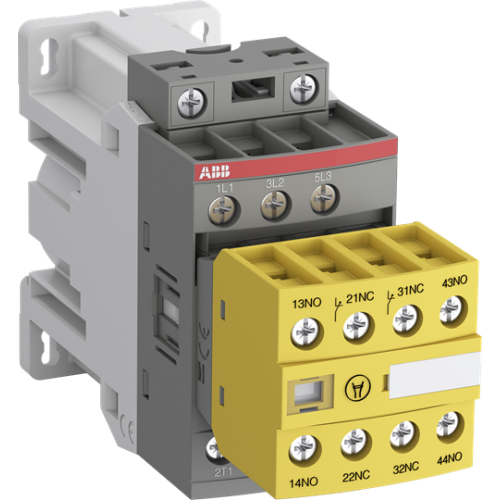

AFS09Z-30-22-30 24VDC Contactor

Manufacturer's No: AFS09Z-30-22-30     Manufacturer: ABB
AFS09Z-30-22-30 24VDC Contactor

Availability Back Order

£95.62
  • AFS09Z-30-22-30 24VDC Contactor
  • 3 pole contactor rated for 690 V IEC or 600 V UL
  • Fixed 2 N.O + 2 N.C. front mounted auxiliary contact blocks with screw connections
  • Controls motors up to 4 kW / 400 V AC or 5 hp / 480 V UL
  • Switches power circuits up to 25 A (AC-1) or 25 A UL general use
  • Easily integrates into systems complying with EN ISO 13849 and EN 62061 standards
  • Yellow low energy auxiliary contact block for status feedback in safety applications
  • Wide control voltage range of 100-250 V
  • Built-in surge protection for compact solution
  • Block type design, extendable with add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AFS09Z-30-22-30
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Depth -
130.5 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
25 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
45 Millimetre
