1534061

Inclinometer, With CANopen Interface

Manufacturer's No: B2N10H-Q42-CNX2-2H1150     Manufacturer: Turck Banner
Inclinometer, With CANopen Interface

Availability On Request

£554.49
  • Inclinometer with CANopen Interface
  • Operating voltage: 10 to 30 VDC

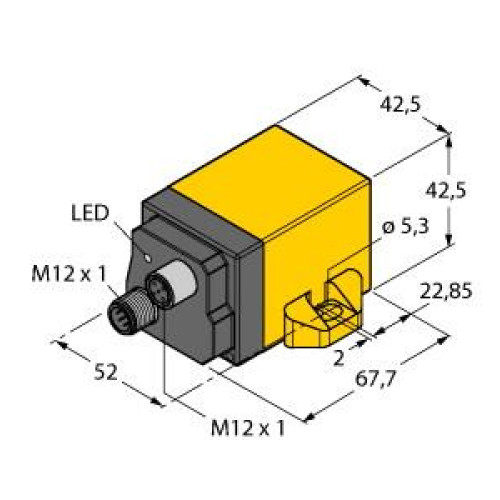

  • Rectangular shape with a height of 42 mm
  • Material: Plastic (PA12-GF30)
  • Meets CiA DS?301 and CiA DSP?410 standards
  • High resolution and accuracy
  • Baud rates from 10 kbps to 1 Mbps
  • High sampling rate and bandwidth
  • Parameterizable vibration suppression
  • Features one TPDO (RTR, cyclic, event-controlled, synchronized)

Read more

  • Configuration via SDO and object directory
  • SYNC load for synchronized transmission of TPDO after receiving SYNC telegram
  • EMCY producer for inclination and internal device temperature monitoring
  • Failure monitoring through heartbeat or nodeguarding/lifeguarding
  • Freely configurable limit frequency (digital filter)
  • Robust and compact plastic housing


Product

Manufacturer Material ID -
B2N10H-Q42-CNX2-2H1150
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP68
Housing material -
Plastic
Type of electric connection -
Plug-in connection
