2620117

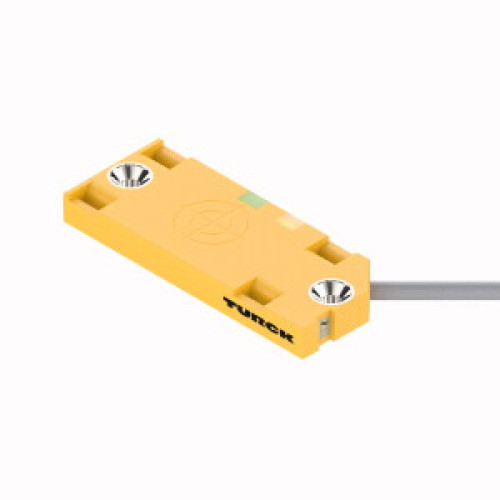

Capacitive Sensor

Manufacturer's No: BC10-QF5.5-AP6X2     Manufacturer: Turck Banner
Capacitive Sensor

Availability On Request

POA
  • Capacitive sensor
  • Rated switching distance: 10 mm
  • Flush mounting
  • Rectangular shape, height: 5.5 mm
  • Large active face for accurate detection
  • Material: Plastic (PP)
  • Fine adjustment using potentiometer
  • DC 3-wire, operating voltage: 10-30 VDC
  • Normally open (NO) contact
  • PNP output

Read more

  • Cable length: 2 meters
  • Cable connection


Product

Manufacturer Material ID -
BC10-QF5.5-AP6X2
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
41111926

Technical Specification

Construction type housing -
Cuboid
Height of sensor -
5.5 Millimetre
Housing material -
Plastic
Interface type -
Other
Length of sensor -
54 Millimetre
Mechanical mounting condition for sensor -
Concise
Rated control supply voltage at DC -
30 Volt
Supply voltage -
30 Volt
Switching distance -
10 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
20.3 Millimetre
