2506100 {T}

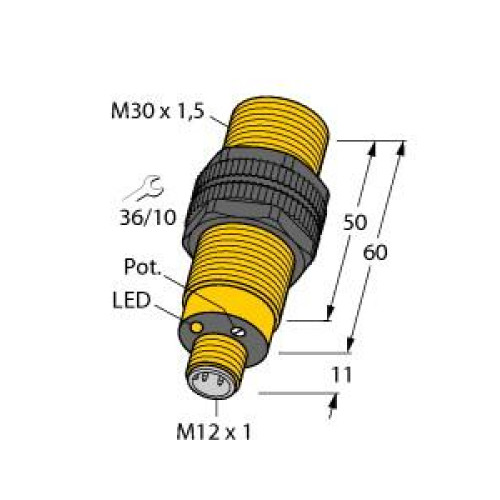

Capacitive Sensor, Rated switching distance 15 mm, Flush, M30 × 1.5

Manufacturer's No: BC10-S30-VP4X-H1141     Manufacturer: Turck Banner
Capacitive Sensor, Rated switching distance 15 mm, Flush, M30 × 1.5

Availability Available to order

POA
  • Capacitive sensor with a rated switching distance of 15 mm
  • Flush design with M30 × 1.5 threaded barrel made of Plastic PA12?GF30
  • Fine adjustment possible via potentiometer
  • Operates on DC 4-wire, 10 to 65 VDC power supply
  • Features complementary contact, PNP output, and M12 × 1 connector


Product

Manufacturer Material ID -
BC10-S30-VP4X-H1141
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Surface protection -
UN
Length of power cord -
- Metre
Surface finishing -
UN
NEMA designation -
UN
Nominal current -
16 Ampere
Colour -
Grey
Core cross section -
1.5 Square millimetre
Housing shape -
Rectangular
Number of socket outlets with protective contact -
0
Material quality -
Other
Material -
Plastic
RAL-number (akin) -
7035
Degree of protection (IP) -
Other
Number of CEE socket outlets -
0
Number of socket outlets with earth pin -
0
Number of other socket outlets -
0
Number of cold device socket outlets -
0
Number of Euro socket outlets -
0
Angle rotated central insert -
45°
Number of socket outlets type Bipasso (Italy) -
0
Number of socket outlets Type P11 (Italy) -
0
Number of NEMA-outlets -
0
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Interface type -
Other
Length of sensor -
60 Millimetre
Mechanical mounting condition for sensor -
Concise
Rated control supply voltage at DC -
65 Volt
Supply voltage -
65 Volt
Switching distance -
15 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of interface for safety communication -
None
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability Available to order

POA
