2601003 {T}

Capacitive Sensor, Operating voltage 10…30 VDC, Rated switching distance

Manufacturer's No: BC3-M12-AP6X/S90/3GD     Manufacturer: Turck Banner
Capacitive Sensor, Operating voltage 10…30 VDC, Rated switching distance

Availability Available to order

£211.82
  • Capacitive sensor with a rated switching distance of 3 mm

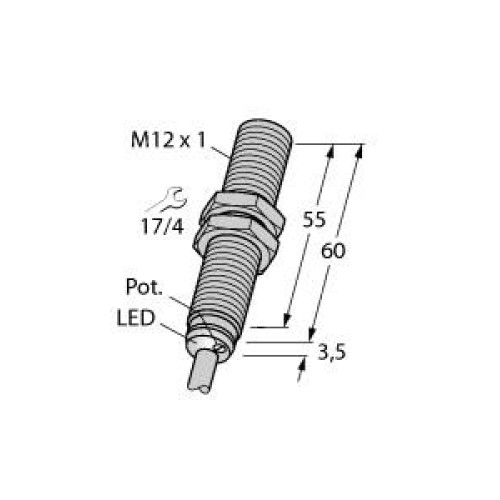

  • Flush mounting style with a M12 × 1 threaded barrel made of chrome-plated brass
  • Fine adjustment possible via potentiometer
  • DC 3-wire sensor operating at 10-30 VDC
  • Normally open (NO) contact with PNP output
  • Cable length of 2 m with cable connection
  • ATEX category II 3 G for Ex zone 2 and ATEX category II 3 D for Ex zone 22


Product

Manufacturer Material ID -
BC3-M12-AP6X/S90/3GD
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Housing material -
Metal
Interface type -
Other
Length of sensor -
63.5 Millimetre
Mechanical mounting condition for sensor -
Concise
Rated control supply voltage at DC -
30 Volt
Supply voltage -
30 Volt
Switching distance -
3 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability Available to order

£211.82
