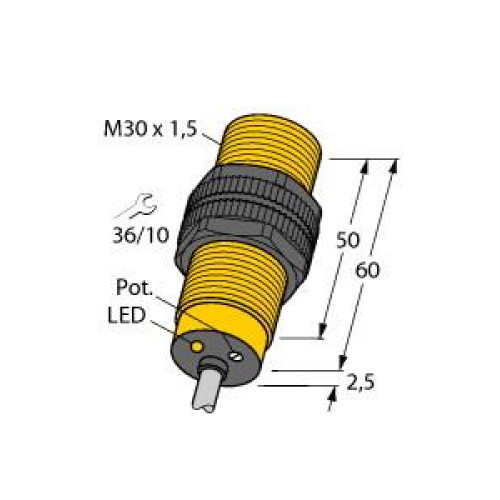

2506015 {T}

Capacitive Sensor, Operating voltage 20…250 VAC, Rated switching distance

Manufacturer's No: BCF10-S30-AZ3X     Manufacturer: Turck Banner
Capacitive Sensor, Operating voltage 20…250 VAC, Rated switching distance

Availability Available to order

£319.14
  • Capacitive sensor
  • Operating voltage: 20-250 VAC
  • Rated switching distance: 10 mm
  • Flush mounting
  • M30 x 1.5 threaded barrel
  • Plastic material: PA12-GF30
  • Cable length: 2 meters
  • Fine adjustment via potentiometer
  • Increased EMI protection for high frequency equipment
  • Suited for highly viscous media

Read more

  • AC 2-wire
  • NO contact
  • Cable connection


Product

Manufacturer Material ID -
BCF10-S30-AZ3X
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Interface type -
Other
Length of sensor -
62.5 Millimetre
Mechanical mounting condition for sensor -
Concise
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Supply voltage -
20 Volt
Switching distance -
10 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Normally open contact
Voltage type -
AC
Turck Banner

Availability Available to order

£319.14
