Inductive Sensor, For Use in Vehicle Board Nets, Operating voltage

Manufacturer's No: BI10-Q14-AP68X2LD-V1131     Manufacturer: Turck Banner
Inductive Sensor, For Use in Vehicle Board Nets, Operating voltage

Availability Available to order

£89.64
  • Inductive sensor for vehicle board nets
  • Operating voltage: 8.6 to 30 VDC
  • Rated switching distance: 10 mm

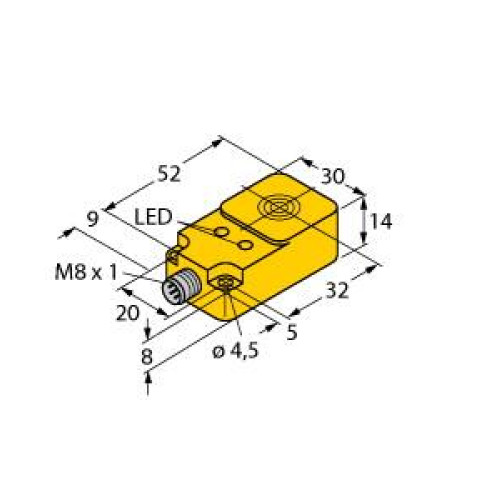

  • Flush, rectangular design with a height of 14 mm
  • Active face on top made of Plastic (PBT?GF30?V0)
  • Suitable for vehicle board nets of 12 V and 24 V
  • Increased interference immunity: 100 V/m radiated according to ISO 11452-4 and 100 mA BCI according to ISO 11452-2
  • Load-dump protection according to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range
  • High protection class IP68/IP69K

Read more

  • Protection against salt spray and rapid temperature change
  • Laser engraved label for permanent legibility
  • DC 3-wire with an operating range of 8.4 to 30 VDC
  • Normally open (NO) contact with PNP output
  • Equipped with an M8 x 1 male connector
  • E1 type approval from the German Federal Office for Motor Vehicles


Product

Manufacturer Material ID -
BI10-Q14-AP68X2LD-V1131
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Explosion safety category for dust -
Other
Explosion safety category for gas -
Other
Height of sensor -
14 Millimetre
Housing material -
Plastic
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
8.6 Volt
Switching distance -
10 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
30 Millimetre
Turck Banner

Availability Available to order

£89.64
