4012051

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: BI2-EM12WDTC-Y1X     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

£124.58
  • Inductive sensor with increased temperature range (-40 °C to +100 °C)

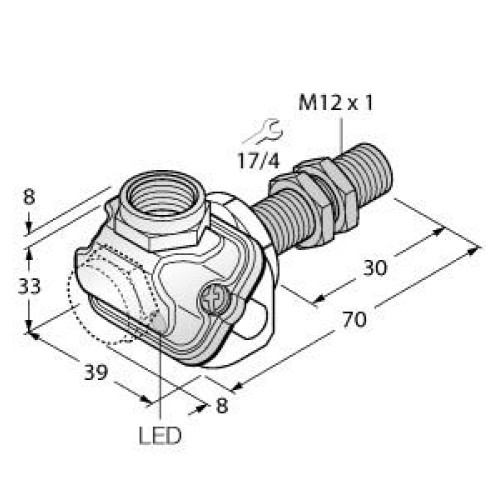

  • Rated switching distance: 2 mm, flush, threaded barrel M12 x 1 made of stainless steel 1.4404
  • High protection class IP69K for harsh environments with special double-lip seal
  • Protection against common acidic and alkaline cleaning agents, suitable for food industry applications
  • DC 2-wire, 8.2 VDC output according to DIN EN 60947-5-6 (NAMUR)
  • Terminal chamber design, ATEX category II 1 G for Ex Zone 0 up to +80 °C, ATEX category II 2 G for Ex Zone 1, ATEX category II 1 D for Ex Zone 20 (-25 °C to +70 °C)
  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c at HFT0, SIL 3 (All Demand Mode) according to IEC 61508, PL e with redundant configuration HTF1


Product

Manufacturer Material ID -
BI2-EM12WDTC-Y1X
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Metal
Length of sensor -
70 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
2 Millimetre
Switching frequency -
5000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switching output -
NAMUR
Voltage type -
DC
Turck Banner

Availability On Request

£124.58
