Inductive Sensor, With Analog Output

Manufacturer's No: BI5-M18E-LIU-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

POA
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 2mm - 4mm

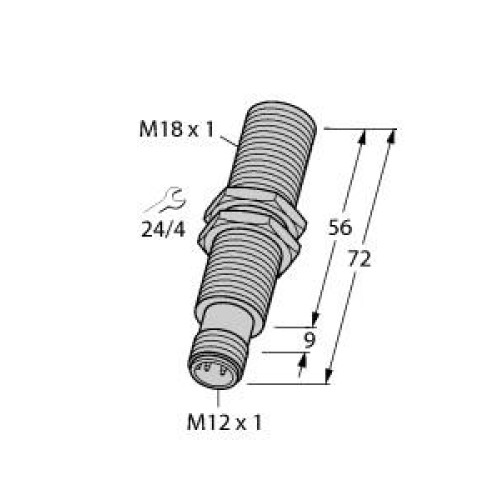

  • Type: Flush, Threaded barrel (M18 x 1)
  • Material: Chrome-plated brass
  • Configuration: 4-wire
  • Analog output: 0-10 V and 0-20 mA
  • Connector: M12 x 1 male


Product

Manufacturer Material ID -
BI5-M18E-LIU-H1141
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Other
Length of sensor -
72 Millimetre
Limiting frequency -
200 Hertz
Material active area of sensor -
Plastic
Measuring range length -
2 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Relative linearity deflection -
3 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Turck Banner

Availability On Request

POA
